GEA Heat exchanger for heating

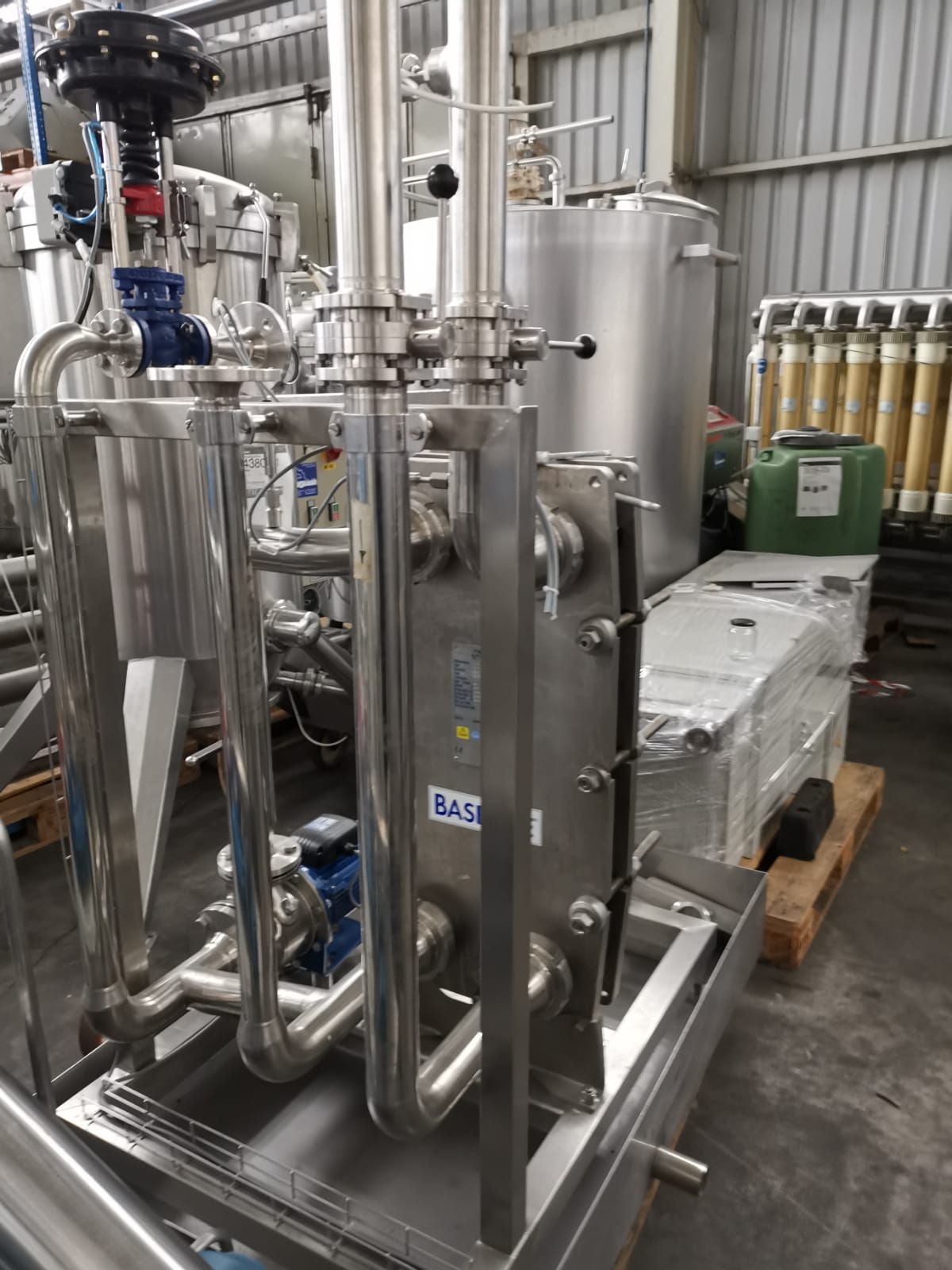

The Alfa Laval M10-MBASE is a compact and highly efficient plate heat exchanger, designed for demanding applications in the beverage and food industry, chemical processing, and general heating and cooling duties.

Technical Specifications

• Type: M10-MBASE

• Heat transfer area: 2.6 m²

• Plate material: Stainless steel Alloy 316, thickness 0.50 mm

• Gasket material: NBRFF Clip-On (Nitrile rubber)

• Plate pack thickness: 63 mm

• Total weight: 232 kg

• Total volume: 13 liters

• Dimensions: Height 672 mm, width 618 mm, depth 530 mm

• Connection standard: DIN NW100

• Bolts: M20

• Expandable: up to 17 additional plates

Operating Data

• Design pressure: 10 bar

• Test pressure: 14.3 bar

• Design temperature: up to 120 °C

• Minimum temperature: 0 °C

• Typical flow examples (according to datasheet):

  • Wine: 2 m³/h (heating 12 → 17 °C, Δp = 47 kPa)

  • Hot water: 2 m³/h (cooling 30 → 24 °C, Δp = 22 kPa)

Design Features

• Plates with parallel flow channels ensure high efficiency and low pressure drop.

• Clip-on gaskets for easy maintenance and cleaning.

• Robust frame and pressure plate construction with M20 tightening bolts (length 360 mm).

• Flexible capacity expansion, up to 17 additional plates can be installed.

• User-friendly assembly with clear A/B plate markings.

Typical Applications

• Beverage pasteurization (e.g., wine, juice, beer)

• Hot water and cooling water circuits

• CIP cleaning systems

• General process heat transfer in industrial applications
