Chain tape, plastic, curvilinear, TAB, Radius 200 mm - 82.5

Chain tape, plastic, curvilinear, TAB, Radius 200 mm - 82.5 All images (1)
Technical Details
Listing ID
ID4002
Offer details
  • Preis Price on request
  • All prices unbinding are ex-works and exclusive of VAT. Sales to commercial customers only.
Description

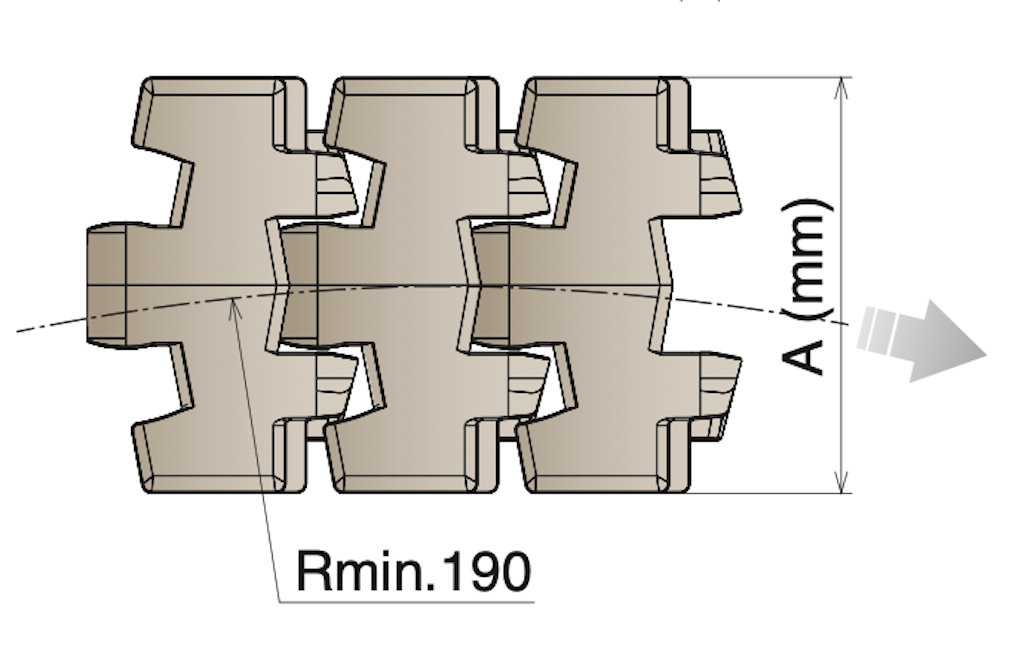

Conveying chain, plastic, curvilinear, TAB, 82,6mm, Radius 200mm, 1 pack = 3,048mtr. TAB system Pitch: 38.1 mm Thickness: 4.8 mm Surface Type: FT - Flat Top Functionality: Side Flex TAB Width (A): 82,5 mm Material: LF - Low friction acetal (01) Back flex radius: 50 mm Sideflexing radius min: 190 mm Mass: 1.06 kg/m Pin material: Stainless steel Box: 3,048 m Max working load: 2200 N
